| Description | Includes:
Hand-held 2 MHz 40 cm2
Hand-held 1 MHz 16 cm2Head
Key

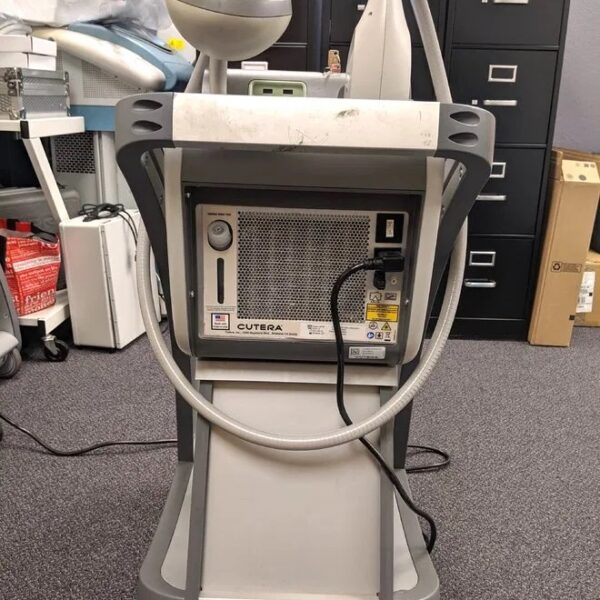

Operators Manual | 2017 Cutera Excel HR 1064 Nd Yag & 755 Alexandrite Hair Removal System, as well as Pigment & Vein Removal & Laser Genesis Skin Rejuvenation;Manufactured: 11/02/2017; Good Cosmetic and Operating Condition, Complete System Refurbishment Performed March 2022; New Replacement Handpiece Installed 03/2022;1064 Nd Yag Pulse Count = 41,588, 755 Alexandrite Pulse Count = 20,591;Includes: New Handpiece, Footswitch, Key, Operator Manual, Operator Eyewear, Patient Eyewear, Interlock. | Cartessa SkinWave Treatment SystemThe Cartessa SkinWave Skin Treatment System combines an aqua-delivery system, skin revitalizing solutions and Hydrogen therapy for a multi-dimensional skincare treatment. Solutions rich in Alpha Hydroxy Acid (AHA), Beta Hydroxy Acid (BHA), Hyaluronic Acid and Hydrogen (H2) are infused deep into the skin, while gentle extraction removes impurities. Its the ultimate compliment to brighten skin, improve vitality and tone.
Cartessa Aesthetics teamed up with Eunsung Global manufacturer to exclusively bring Skinwave to the US. Eunsung Global is a South Koreabased, global leader focused on innovation in medical aesthetic equipment, present in over 70 countries and 100 partners worldwide. | The DWX-4W goes beyond dry milling and is the epitome of wet grinding technology. It uses 4-axis simultaneous movements to wet grind precision inlays, onlays, crowns, veneers and short-span bridges from glass ceramic and composite resins. | Cutera Solera Opus with LP560 Handpiece. Included Handpiece & Pulses: LP 560 Handpiece = 36,319 Pulses; Also Includes: Operator Eyewear, Footswitch, Keys and 180 Day Warranty. | hair removal laser / skin rejuvenation / vascular lesion treatment / onychomycosis treatment |
| Content | CUTERA TRUSCULPT 3D BODY SCULPTING
Cutera Trusculpt 3D Body Sculpting A New Dimension in Body Sculpting
The rise in popularity of body sculpting can be attributed to two main factors: improved non-surgical treatment results and a population that values investing in themselves.The truSculpt 3D body sculpting device is ideal for patients and practitioners alike. truSculpt 3D is a non-invasive, Monopolar RF system optimized to deliver Targeted, Repeatable and Uniform sculpting of problem areas for a TRU 3D result with no visual downtime. truSculpt 3D takes a multi-dimensional approach to decrease circumference and reduce fat cells, by delivering and holding clinically therapeutic temperatures to the subcutaneous adipose tissue to achieve the clinical efficacy in the shortest possible treatment time with enhanced comfort.Glide Technique
truSculpt 3D glide technique offers consistent results – an average of 24% fat reduction, in a short treatment time over a large treatment zone.1 One 60-minute session provides clinically proven results in the most common treatment areas — the abdomen and flanks.Targeted RF Energy
The truSculpt 3D system uses a low frequency and high conductivity radiofrequency (RF) technology for deep penetration to target the subcutaneous fat layer while maintaining a comfortable surface temperature for patients. Over a 12-week period, the damaged fat cells are slowly broken down and eliminated from the treated subcutaneous adipose tissue2.Repeatable, Proven Outcomes
truSculpt 3D features a proprietary closed-loop temperature feedback mechanism that ensures therapeutic temperatures are met throughout each treatment. This means your patients are comfortable while achieving consistent results.Cutera Trusculpt 3D Body SculptingtruSculpt 3D Handpieces
truSculpt 3D gives you the flexibility to non-invasively address body sculpting concerns. With truSculpt 3D’s two handpiece options (40 cm2 and 16 cm2), you can decrease circumference and eliminate unwanted fat from large and small areas.Hand-held 2 MHz 40 cm2
For use in a gliding motion over fat pockets contained within the small, medium or large treatment templates. Handpiece covers up to a 576 cm2 treatment area on the abdomen and flanks in 60 minutes.Hand-held 1 MHz 16 cm2
For use with a stationary placement over soft tissue in areas that are smaller than the templates. The 16 cm2 handpiece covers petite treatment areas in 5 minutes.Includes:
Hand-held 2 MHz 40 cm2
Hand-held 1 MHz 16 cm2Head
Key
Operators Manual | 2017 Cutera Excel HR 1064nm & 755nm Hair RemovalAlexandrite | | Wavelength | 755 nm | Maximum Energy | 53J | Pulse Duration | 3 ms | Spot Size | 5-18 mm | Repetition Rate | 2 Hz | | | Nd Yag | | Wavelength | 1064 nm | Maximum Energy | 80J | Pulse Duration | 0.1 – 300 ms | Spot Size | 3-12 mm | Repetition Rate | Up to 10 Hz | Cooling | Contact Sapphire | Aiming Beam | 635 nm | Dimensions | 35″ H x 12″ W x 24″ D | Electricial | 200-240 VAC, 50/60 Hz, 20A/30A | | | Cooling | Contact Sapphire | Aiming Beam | 635 nm | Dimensions | 35″ H x 12″ W x 24″ D | Electricial | 200-240 VAC, 50/60 Hz, 20A/30A |
MANUFACTURER NOTES Superior, Comfortable Laser Hair Removal Laser Hair Removal – An In-demand Procedure Global hair removal procedures are growing at a rapid pace. Laser hair removal has been among the top non-surgical procedures according to the American Society of Aesthetic Plastic Surgery and procedure revenue is anticipated to go to $1.35B by 20221. The industry often refers to laser hair removal as a gateway procedure as it offers an entry point into the aesthetic market for patients and practitioners alike. excel HR combines a high-power 755 nm Alexandrite laser and Cutera’s proven long-pulse 1064 nm Nd:YAG laser for safe, effective high-volume hair removal on all skin types. The combination of wavelengths not only allows for effective hair removal, but is also a solution for epidermal pigmented lesions, vascular lesions, and Cutera’s signature laser genesis skin revitalization procedure. excel HR Technology Proven Wavelengths excel HR combines the gold standard laser wavelengths for hair removal. The 755 nm Alexandrite laser is highly absorbed by melanin making it an ideal solution for finer hair on skin types I-III. Because of the high melanin absorption characteristics, it has also been proven to provide long-term results on epidermal pigmented lesions. The 1064 nm Nd:YAG is the safest wavelength for permanent hair reduction on darker skin types and tanned skin. By selecting the appropriate spot size, this laser can also be used for treating facial and leg veins and perform laser genesis procedures. truPulse Delivery with Index Matching Unique to Cutera, the truPulse technology delivers constant, sustained energy throughout the pulse duration to ensure consistent performance and proven clinical outcomes for your patients. excel HR’s index matching delivery results in more efficient coupling of laser energy to target structures. Index matching allows backscattered light to escape, further protecting the epidermis from heat build-up while maintaining treatment efficacy. Superior Contact Cooling excel HR utilizes sapphire contact cooling to provide continuous cooling, maximizing your patients’ comfort and treatment safety. In a patient preference study that measured comfort and satisfaction for laser hair removal, 100% of the patient’s preferred excel HR over a comparable, competitive laser hair removal procedure. 321st Century Laser Hair Removal System Developed by the innovative leader in aesthetic laser technology, excel HR™ laser hair removal system provides advanced premium hair removal solutions for every skin type. Combining a new high-power 755 nm Alexandrite laser, and CUTERA’s proven long-pulse 1064 nm Nd:YAG laser, coupled with the superiority of sapphire contact cooling, excel HR redefines modern laser hair removal. This makes excel HR laser system an effective, safe and comfortable option for laser hair removal for the 21st century. Applications 2017 Cutera Excel HR 1064nm & 755nm Hair Removal - Hair removal
- Benign pigmented lesion removal – All Skin Types I-IV
- Veins, facial
- Veins, leG
- Laser Genesis
| CARTESSA SKINWAVE TREATMENT SYSTEMCARTESSA SKINWAVE TREATMENT SYSTEM, skin revitalizing solutions and Hydrogen therapy for a multi-dimensional skincare treatment. This professional skincare machine incorporates solutions rich in Alpha Hydroxy Acid (AHA), Beta Hydroxy Acid (BHA), Hyaluronic Acid and Hydrogen (H2) using hydradermabrasion. Solutions are infused deep into the skin, while gentle extraction removes impurities. The Skinwave facial is the ultimate compliment to brighten, improve vitality and tone in all skin types.Cartessa Aesthetics teamed up with Eunsung Global manufacturer to exclusively bring Skinwave to the US. Eunsung Global is a South Korea–based, global leader focused on innovation in medical aesthetic equipment, present in over 70 countries and 100 partners worldwide.CARTESSA SKINWAVE TREATMENT SYSTEM Applications of the Skinwave:Skin Revitalization
Tone & Brighten
Cleanse & Exfoliate
Oil & Acne Control
HydrationCartessa SkinWave Treatment SystemThe Cartessa SkinWave Skin Treatment System combines an aqua-delivery system, skin revitalizing solutions and Hydrogen therapy for a multi-dimensional skincare treatment. Solutions rich in Alpha Hydroxy Acid (AHA), Beta Hydroxy Acid (BHA), Hyaluronic Acid and Hydrogen (H2) are infused deep into the skin, while gentle extraction removes impurities. Its the ultimate compliment to brighten skin, improve vitality and tone.
Cartessa Aesthetics teamed up with Eunsung Global manufacturer to exclusively bring Skinwave to the US. Eunsung Global is a South Koreabased, global leader focused on innovation in medical aesthetic equipment, present in over 70 countries and 100 partners worldwide.Hydrogen Therapy Clean
Skinwaves aqua-delivery system starts with a Hydrogen-enriched water infusion. The high concentration of Hydrogen reacts with active Oxygen that is linked to drying and aging. By forming newly-bound water molecules that are extracted via the radial tips, this unique Skinwave step provides antioxidant and moisturization benefits and reduces inflammation.Target Skin Concerns
Three nutrient-rich solutions optimize skin revitalization. Skinwave infuses deep into the skin Alpha Hydroxy Acid (AHA), Beta Hydroxy Acid (BHA) and Hyaluronic Acid to address top skincare needs: exfoliating, oil control and moisturization. Dial-up the volume of one of these solutions to offer a more customizable treatment.Multi-Dimensional Experience
Two additional handpieces round out this multi-dimensional aesthetic treatment. Electrical pulse hand-piece open pores to maximize solution absorption with red and blue LED light for targeted treatments. Double-lifting handpiece activates lymphatic circulation, provides muscle relaxation, skin tightening and lifting effects. | Roland DWX-4W Dental Milling UnitReliable High PerformanceIn addition to milling on X, Y and Z axes, the DWX-4W rotates pin-type blocks 360 degrees on a fourth axis (A axis) to support undercuts. The ball screw-driven 4-axis control allows for smooth, high-precision machining. The DWX-4W’s high-performance 60,000-RPM Jaeger spindle is known for its reliability and supports precision milling of glass ceramics and composite resin. With its multi-pin clamp, the DWX-4W is a wet dental milling machine that can mill up to three different pin-type materials continuously in one operation. As a result, prosthetics for up to three different patients can be produced in a single production run, saving time, labour and costs.Features and Benefits :Simultaneous 4-axis machining4-state Automatic Tool Changer (ATC)60,000 RPM Jaeger DentaDrive SpindleCAM software bundledVirtual Machine Panel (VPanel)Fully-integrated water and coolant filtration systemCoolant leakage & flow monitoring sensorsTool life monitoringMail notification systemSummary• Maximum Convenience
• Virtual Machine Panel
• Progress and Error Alerts for Error-Free Milling
• Coolant Compartment and Water Filtration
• Clean Cutting Area for Precision Milling
• Economical Open Architecture
• CAM Software Included
• Growth Potential
• Peace of MindEven novice users can quickly set up the DWX-4W and begin creating prosthetics the same day the machine arrives. Ease of use features include:Simple one-button design.colour-code LED status lights signal current job progress.Fully integrated pump and coolant system, with water collection filtration for maintaining a clean and efficient workspace.The Virtual Machine Panel (VPanel) allows users to configure settings from their computers, send CAM data the the DWX-4Wfor production, and track milling progress.Combine DWX Devices for a Complete Dental SolutionPair the DWX-51D and DWX-4W for the most flexible and productive dry and wet milling solution. using both dry and wet DWX devices gives you the technology and confidence to take on the maximum amount of glass ceramics and zirconia restorations. in contrast to dry and wet combo devices, a dedicated DWX dry and wet solution eliminates the switch back-and-forth through processes and the hours of cleaning in-between jobs.Summary:Capable of milling glass ceramics and composite resinCombines 4-axis milling with simple one-button operationsHigh-performance Jaeger DentaDrive spindleMulti pin-clamp to mil up to three different pin-type materials continuously4-Station automatic Tool Changer to change grinding burs for continuous productioncolour-code LED status lights signal machine errors and milling progressconnect up to four DWX devices to one computerAutomatic machine calibrationPair the DWX-51d and DWX-4W for the most flexible and productive dry and wet solution | Cutera Solera Opus
Cutera Solera Opus Specifications :Laser Type:Pulsed-Light Flashlamp
Wavelength:500-1200nm
Output:Greater or Less than 120 J
Fluence:2 to 65 J/cm2
Exposure Duration:Automatic
Repetition Rate:Up to 1.0 Hz
Delivery System:User Detachable Umbilical Cable and Handpiece
Treatment Spot:10mm x 30mm Rectangle
Epidermal Cooling:Sapphire Window is Maintained at Temperature to Prevent Window Heating
System Cooling:Self-Contained, Water to Air Heat Exchanger
Aiming Beam:NoneThe Solera Opus is a compact, portable, tabletop console that is capable of providing a variety of aesthetic skin treatments with a wide variety of Cutera flashlamp handpieces, Additionally, given its ability to predictably operate with new handpieces as they are developed, the Solera Opus is a reliable clinical instrument that can grow alongside new technology.Typically, the Solera Opus is used with four specific handpieces: the ProWave 770, the AcuTip 500, the LP560, OPS600 and the Limelight. All designed to be user-detachable, the handpieces each function with an umbilical cable that brings coolant and electrical utilities from the console to the handpiece.The ProWave 770, functioning with three wavelengths on a 770 1100 nm scale, uses selective photothermolysis to treat the targeted tissue without damaging the surrounding skin cells in light-based hair removal.Similarly, the AcuTip 500 is a precision targeting tool that employs selective photothermolysis to provide lesion treatments.The LP560 and OPS600, on the other hand, are pulsed-light handpieces that are visible to the human eye thus requiring no aiming beams and are instrumental in the treatment of benign pigmented lesions. The main difference between the two is that the LP560 operates at 560 1200 nm while the OPS600 operates at 600 850 nm.The LimeLight is an IPL device used to treat benign pigmented lesions, vascular lesions and is also for photorejuvenation. It operates on wavelength of 520 to 100nm.While the Solera Opus utilizes different handpieces to target different treatments, the main options for treatment include: benign pigmented lesions; vascular lesions; and stable, long-term, or permanent unwanted hair removal. The console can also be used in the treatment of superficial telangiectasia, or spider veins, when used with the correct handpiece.The Solera Opus Is Easy To MaintainAs with any piece of equipment, the Solera Opus is set up for long-term use given that preventive maintenance, safety, power, and calibration checks are performed on an annual or as-needed basis. If the machine is routinely used, annual checks should be sufficient; however, if the system is not regularly used, checks should be performed every six months. All maintenance checks should also be conducted by a certified Cutera representative. Regular cleaning, though, can be performed by the technician and is a simple matter of disinfecting the materials in the following manner:External surfaces: Using a clean cloth dampened with a non-caustic cleaning solution (i.e. mild soap and water, isopropyl alcohol, or hospital grade disinfectant), disinfect the outside surfaces and then allow to air dry.Touchscreen display: Use a soft cloth with an alcohol-based cleaner to wipe the surfaces clean.Handpiece: Follow the guidelines within the individual handpiece manuals.Coolant checks (upon initial arrival and for the occasional top-off): Turn off the system, remove and fill the reservoir with distilled water, turn the keyswitch on to activate the water pump, run for five or ten seconds, top off the reservoir and repeat the process until the reservoir is completely full.Confirming calibration: While the Solera Opus is not a laser system and consumers cannot alter the system calibration, calibration should be checked every twelve months or so by a certified engineer or technician trained on energized electronic pulsed-light equipment with a laser energy meter.2017 Cutera Solera Opus with LP560 Handpiece. Included Handpiece & Pulses: LP 560 Handpiece = 36,319 Pulses; Also Includes: Operator Eyewear, Footswitch, Keys and 180 Day Warranty. | Duetto Laser Quanta System
The device at a glance
The Duetto MT – EVO Family system is based on Alexandrite and Nd:YAG lasers, 755 nm and 1064 nm, in single or combined emissions. Duetto MT can meet the necessities of every patient by tailoring the treatments in every detail.
Big spot sizes, wide range of pulse widths and fast repetition rate together with the exclusive possibility to set the proportion between Alexandrite and Nd:YAG lasers through the Mixed Technology, make this device one of the most advanced and flexible laser in Aesthetics and Dermatology field especially for the Hair Removal, Vascular and Skin Rejuvenation treatments.
The TWAIN optional handpieces can be installed at any time on the field and can expand the range of applications even more.Mixed Technology
Duetto MT equipped with the second generation of consolidated proprietary Mixed Technology which is able to perform the largest range of hair removal applications, as well as vascular and rejuvenation treatments.
Duetto MT allows the operators to easily select single or double wavelength emissions adapting the treatment to all skin types more precisely.Contact Skin Cooler or Air Skin Cryo
Effective skin cooling is essential forost lasers.
The integrated contact skin cooler of Duetto MT can be used with or without a sapphire window at three different target temperature.
The Skin Cryo handpiece adapter, instead, is intended to work in combination with an external compatible air cooling unit to provide a cold air flow designed for the reduction of pain and thermal injury on wide areas.Duetto Laser Quanta SystemThe TWAIN options are based on IPL or laser handpieces that can also be installed at the clinic’s site any time.
Twain IPL option is based on Intense Pulsed Light technology, it has different optical filters or different handpieces that can have integrated skin cooling (depending on the model and wavelength). It is indicated for:
Hair Removal | Dermatological vascular treatments | Benign pigmented lesions | Skin rejuvenation | Active acne
Twain 2940 is an Er:YAG laser handpiece ideal for skin ablations with confined thermal diffusion for excellent safety scores. It is indicated for:
Normal spots: Skin ablation | Full skin resurfacing
Fractional: Skin resurfacing | Traumatic and acne scars | Epidermal dyschromia | Sun and age spots |
