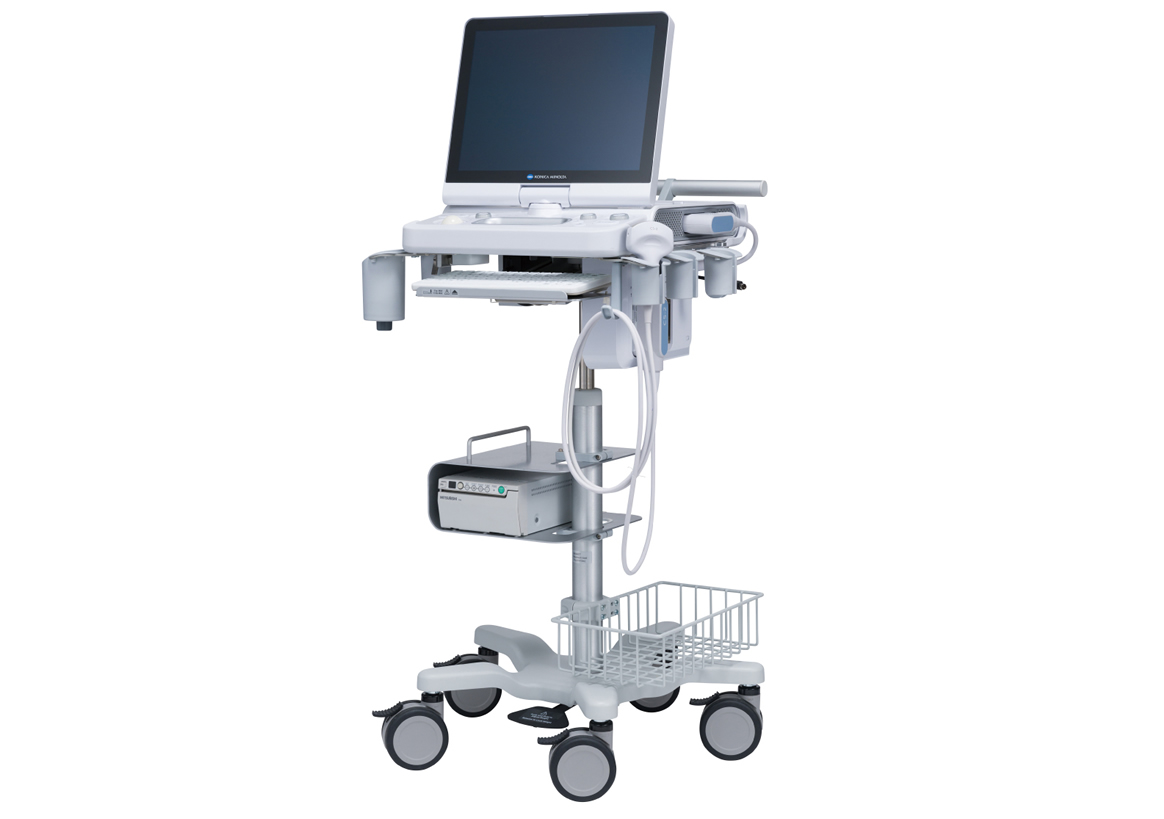

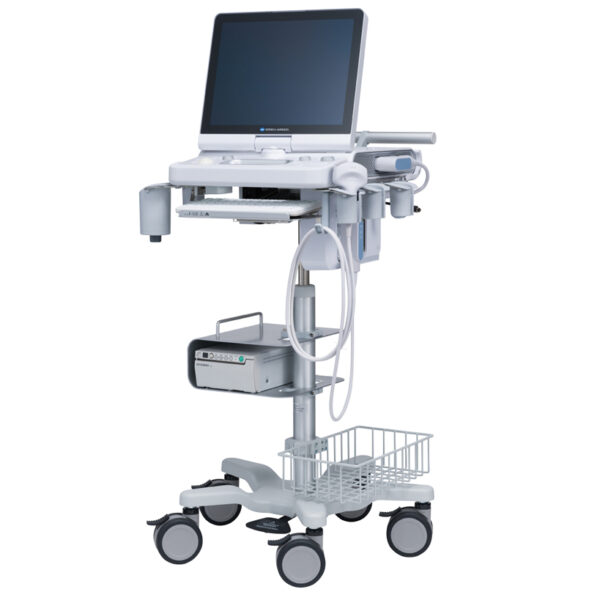

| Content | Konica Sonimage HS2 Ultrasound
Konica Sonimage HS2 Ultrasound is a Point-of-Care portable ultrasound system designed to support a wide range of applications and patient types. Konica Minolta’s advanced technology features provide high resolution image quality and efficient workflow for daily clinical practice.Konica Sonimage HS2 Ultrasound Unique Nanofabrication Technology, combines both material and machining expertise, to produce broad frequency linear probe “L18-4”. It offers both high sensitivity as well as greater penetration.T2HI (Traid Tissue Harmonic Imaging)
Dual Sonic Technology
By combining T2HI and Dual Sonic, high quality THI signal is formed around the center of ultrasound beam in receiving area.
As a result, it suppresses the acoustic noise and ensure the optimum image from deep to superficial structure.iXRET
The SONIMAGE HS2 achieves higher resolution and faster frame rates by utilizing Konica Minolta’s unique technologySNV (Simple Needle Visualization)
The SONIMAGE HS2 automatically detects needle insertion.
This funciton can be used both ‘In plane’ and ‘Out of planeEfficient Workflow for Daily Clinical Practice The SONIMAGE HS2 delivers intuitive workflow by customizing 8 physical buttons and touch panel. MPA (Multi Parameter Adjuster) MPA enables to change multiple image parameters like frequency change and turning trapezoid on in conjunction with depth change. Vascular NAVI
All necessary adjustments and operations are realized automatically.
By touching the mode and measurement button, semi-automatic measurement also achieved.
This function supports easy workflow for blood vessels and blood flow volume measurements. The SONIMAGE HS2 offers the unique capability to write text and draw lines and figures using fingers on the screen. This is an excellent tool for training and communication with patients. | Sonosite M-Turbo Ultrasound Machine
M-Turbo is a compact ultrasound imaging system from SonoSite, featuring the image quality and functionality needed to meet your diverse needs.Ideal for the general practitioner looking to do more advanced cardiac and vascular exams.Highlights of the new Sonosite M-Turbo :- Now available the M-Turbo with probe.
- This special version of the M-Turbo comes with a one year warranty, however the probes still have the standard 5 year Sonosite warranty.
- With the M-Turbo you can still add Colour, Pulse Wave and Continuous Wave Doppler.
- The system is now available with DICOM networking.
- Speak to your local Account Manager now to arrange a demonstration.
The standard M-Turbo is also still available exclusively from BCF.Highlights of the Sonosite M-Turbo:- More processing power than MicroMaxx – the next step up in image quality
- 5 year manufacturer’s warranty
- Mains or battery powered so can be used anywhere, anytime
- Able to upgrade from standard black and white system to high quality Colour/Doppler in future
- Large range of probes for all applications
. - Quick start up in just 12 seconds.
More… Sonosite M-Turbo Ultrasound MachinePortable, tough and easy to use. So tough it was originally designed for the American military and comes with a full manufacturer’s 5 year warranty.Despite its size, the M-Turbo produces outstanding cardiac images. It has very high colour Doppler sensitivity.Fully upgradeable to Colour, Pulsed Wave (PW) and Continuous Wave (CW) Doppler and capability to upgrade to DICOM or Wireless DICOM. You can connect it to a PACS system to allow viewing and secure storage of images.Stores still images and movie clips which can be exported via USB in PC friendly formats (jpeg, mpeg and avi).Optional enhanced needle visualisation software (unique to Sonosite) easily highlights needles within the patient allowing for accurate acquisition of a FNA or Tru-Cut biopsy sample.M-Turbo is a compact ultrasound imaging system from SonoSite, featuring the image quality and functionality needed to meet your diverse needs. The standard M-Turbo is also still available exclusively from BCF. | Sonosite Titan Ultrasound Machine
The SonoSite Titan Portable Ultrasound is SonoSite’s second generation portable ultrasound system. This system improved upon the technology of the SonoSite 180 with a larger screen and keyboard packed into a laptop style system. This system is well suited for Vascular access, Musculoskeletal, Anesthesiology, Internal Medecine, Emergency rooms and Family Physicians. Veterinary configurations are available. Veterinary configurations are available.8.4″ LCD monitor, 2 probe ports, Vascular, OB/GYN, Cardiac reports, Soft keys, Split screen, Zoom, Storage via 64 or 256 MB flash cards, 220 image CINE loop, USB & Ethernet image transfer, Volume calculations via diameters, THI [Tissue Harmonic Imaging], SonoCalc [IMT analysis, PC-based], DICOM, S-video (in/out), RGB, Composite video.
Dimensions: 3″ (H) x 10.9″ (W) x 11.9″ (D) Weight: 7.7 lbs Manufacturer
Sonosite Application
Cardiology, Endocrinology, Family Practice, Gastroenterology, Internal Medicine, Nephrology, Neurology, OB-GYN, Orthopedics, Otorhinolaryngology, Pain Management, Surgery, Urology, Vascular Probes - C8 – prostate – 8-5 MHz 8-mm broadband intracavitary array – 8.5 cm – Available – MicroMaxx/ TITAN
- C11 – abdominal/ pediatric cardiology/ neonatal/ vascular – 8-5 MHz 11-mm broadband curved array – 10 cm – N/A – TITAN
- C15 – adult cardiology/ abdominal – 4-2 MHz 15-mm broadband tightly curved array – 25 cm – N/A – TITAN
- C60 – abdominal/ obstetrics/ gynecology – 5-2 MHz 60-mm broadband curved array – 22 cm – Available – TITAN
- ICTe – obstetrics/ gynecology – 8-5 MHz 11-mm broadband tightly curved array – 10 cm – Available – MicroMaxx/ TITAN
- L25 – nerve/ musculoskeletal/ vascular and superficial – 10-5 MHz 25-mm broadband linear array – 6 cm – Transverse Guide Available – TITAN
- L38 – small parts/ breast/ vascular/ nerve/ musculoskeletal/ superficial – 10-5 MHz 38-mm broadband linear array – 6.5 cm – Available – TITAN
Options - Extended cardiac package
- Pulsed wave (PW) doppler
- Continuous wave (CW) doppler
- Tissue Harmonic Imaging
Accessories - Cart
- Black and White Video Printer
- DVD Recorder
The SonoSite Titan is the earliest version of the PoC dedicated portable ultrasound machine from Sonosite. Though its form factor is compact, it provides high resolution imaging, rapid responsive time, and supports a broad range of applications including cardiac. | SonoSite MicroMaxx Ultrasound Machine
The SonoSite MicroMaxx Portable Ultrasound is the third portable system to emerge from SonoSite. With improved image quality, a larger screen and additional imaging features, this system is the upgrade to the SonoSite Titan. The SonoSite MicroMaxx portable ultrasound is a well suited portable ultrasound, and is capable of performing the duties of a shared service system.The portable SonoSite MicroMaxx Portable Ultrasound system has purpose-built software and proprietary ASIC design yielding high-quality images with speed and reliability while efficiently operating on either AC or battery power. From busy offices and big-city hospitals to critical-care situations where seconds count, the handheld SonoSite MicroMaxx ultrasound system, boots up quickly, from off to scanning in under 15 seconds. Sonosite Micromaxx portable ultrasound transducers, probes, service and pricing are available through UDS Portable Ultrasound.Big machine performance in a hand-carried unitMicroMaxx’s purpose-built software and proprietary ASIC design yields high-quality images with speed and reliability while efficiently operating on either AC or battery power.MicroMaxx goes anywhere you need itFrom busy offices and big-city hospitals to critical-care situations where seconds count, the SonoSite MicroMaxx&trade system boots up quickly, from “off” to scanning in under 15 seconds. This easily carried device gets medical professionals into-and out of-tight spaces fast.Embedded software means solid reliabilityThe MicroMaxx system software is hard-wired and purpose-built for faster boot.Chip Fusion TechnologySonoSite’s proprietary Chip Fusion™ Technology enables advanced, cart-based image resolution in a hand-carried unit by integrating digital signal processing and multiple ultrasound functions into a custom ASIC microchip to deliver unprecedented performance without the size, weight and cost of conventional systems.Clinical utilityThe MicroMaxx system comes with a wide range of transducers for multiple clinical applications. With MicroMaxx, SonoSite is extending the capabilities of hand-carried systems by adding high-performance features.Durability SonoSite MicroMaxx Ultrasound MachineSonoSite products and technology deliver proven reliability and durability in conventional medical settings as well as some far more challenging environments, such as supporting rescue operations following natural disasters. Extensive quality controls such as “drop testing” ensure that SonoSite products continue to set the industry standard for both reliability and durability.MicroMaxx’s reliability and durability are backed by a one-year warranty, an industry first, far exceeding warranties available on competing products.From “Off” to scanning in just secondsThis is vitally important in many medical situations where seconds really do count-whether getting crucial diagnostic information in an emergency or making the best use of time in a hectic daily schedule. | Acuson Cypress PLUS Ultrasound
Acuson Cypress cardiovascular system PLUS delivers advanced ergonomics and superior performance in a highly portable package. The Cypress System PLUS is a highly miniaturized, all digital, phased array echocardiography system that provides complete studies and outstanding images – even on patients who are difficult to image.The Cypress PLUS transitions easily from your small private office or hospital echo lab to the operating theatre or your patient’s bedside. It’s ultrasound where you need it.TheCypress PLUS delivers high performance in a complete range of cardiovascular capabilities.Designed with advanced ergonomics in mind, the Cypress system PLUS streamlines your workflow and increases your productivity.If you already own a Cypress system, keeping technologically current is simple with the Cypress Upgrade program.The Cypress system is the smallest, lightest, high performance, phased array echo system ever built. Weighing in at just 19 pounds, with digital storage capacity for over 100 studies and network capabilities to send studies from remote locations, clinicians can perform complete echocardiography studies from almost anywhere. The Cypress system was designed for portability, durability and reliability, and to withstand the rigors of constant transportation. Internal system interconnects are minimized. Key components are shock mounted and the entire system sits inside a robust chassis. From hospital to office or from airplane to mountain village, the Cypress system will perform.Full Range of Capabilities
TheCypress system is a complete, full-featured echo cardiography system that provides complete studies and outstanding image quality even on the most difficult to image patients. It offers a full range of features including:– 2D with Harmonics
– Patient Report with audio capture
– M-Mode
– Embedded DICOM conformance
– Color PW and CW Doppler
– High frame rate color flow imaging
– Stress echo
– Network output
– Vascular imaging
– Comprehensive calculations package
– Contrast agent imaging
– USB peripheral support (PC printer connectivity)Physical Characteristics Acuson Cypress PLUS Ultrasound• Single unit houses ultrasound system with control panel, flat panel display and MO drive
• Weight: 8.6 Kg (19 pounds)
• Height: 35.6 cm (14 in)
• Width: 40.6 cm (16 in)
• Depth: 20.3 cm (8 in) – with keyboard folded up 34.3 cm (13.5 in) – with keyboard down
• Heat dissipation: 490 BTU/hour (nominal)User Interface
• Fold-up control panel for portability
• Direct access to system functions through dedicated keyboard controls and multifunctional soft keys
• Easy-access main controls, including multifunctional trackball, enter and select keys, for minimum hand movement while controlling the system
• Adjustable trackball speed
• Functional grouping of keys, rotational knobs, switches and sliding TGC controls for direct access to critical functions
• Tactile feedback on control activation
• Backlighting of control panel labels
• Mode-dependent soft keys
• User-interface tools
• Pre-defined and user-entered labeling textMonitor
• 10.4 inch/26.4 cm flat panel active matrix display screen
• Protective anti-glare, anti-reflective lensHard Drive
• Internal hard drive for image and data storage
• Internal storage of approximately 50 patient studies (25 – 30 loops per study)Transducer Ports
• One transducer connector (type IEC601BF)Operating/Display Modes
• 2-D, fundamental and harmonic imaging
• Color Doppler Velocity (CDV)
• Color Doppler Energy (CDE)
• M-mode, vertical split screen display with 2-D
• Pulsed Wave (PW) Spectral Doppler
• Continuous Wave (CW) Spectral Doppler
• Duplex Doppler (combined 2-D and Spectral Doppler display)2D Calipers – Generic Measurements and Calculations
• Measurements and calculations in 2D, M-mode, color Doppler, PW and CW spectral Doppler modes
• Basic measurements and report calculations
• Comprehensive patient calculations report
• On-screen “mini-reports”
• Complete or configured patient report
• Cardiac package
• Carotid package
• Arterial package
• Venous package
• Abdominal package
• User configurable Sites
• Selectable menu position
• Four cursor types
• Angle correction
• Distance
• Area
• Slope
• Time
• Velocity
• Velocity/pressure
• Mean velocity/pressure gradient
• Velocity Time Integral
• Pressure halftime
• Continuity Equation
• Ejection Fraction
• Left Ventricular Volumes, including End-Systolic and End-Diastolic volumes
• Cardiac output
• Cardiac index
• Fractional area changeCine Review
• 2D Cine memory up to 15 seconds of history
• Color Doppler cine memory up to 15 seconds of history
• M-mode strip cine along with PW and CW Doppler mode
• strip cine memory determined by sweep speed (selectable by the user) 10, 20, 30 or 40 secondsTransducer Technology
• 3V2c: 2-4 MHz wideband phased array
• 7V3c: 3-7 MHz wideband phased array
• 7L3: 5-7 MHz wideband linear array (Vascular)
• 4C1: 2-4 MHz wideband curved linear array (Abdominal)
• V5Ms: 3-6 MHz wideband phased array (micro-pinless (MP) connector) | SIUI CTS-800 Veterinary Ultrasound Machine with Linear Rectal Probe
This small and convenient “Palm-Sized” portable veterinary ultrasound scanner fits in the palm of your hand, and is mostly used for farm animals. Its long battery life and waterproof features makes it the perfect ultrasound scanner for veterinarians on the field.The screen of the SIUI CTS-800V will rotate horizontally or vertically, according to how you are holding it.Gravity Sensor: You can operate the ultrasound system either in transversal layout or vertical layout. It can automatically adapt to two different layouts when you rotate it.Grid for estimation: With grid on the image area you can easily estimate the size of the target substance like follicle fertilized egg etc.SPECIFICATIONS SIUI CTS-800 Veterinary Ultrasound Machine with Linear Rectal ProbeMonitor: 7-inch WVGA LCD monitorWeight: 0.8kg Environmental rating: IP54 (main unit) IP67 (probe head) Battery: 3 hours operation time Display mode: B 2B ZOOM B B/M M Depth: Max to 250mm B gain: 0-100 Image storage: 256 frames Cine loop: 256 frames Probe: L50/7.5 MHz linear rectal probe (standard) L65/5.0 MHz linear rectal probe (optional) R20/5.0 MHz micro convex probe (optional)
– Main unit with 7-inch LCD monitor.
– 1 Probe connector.
– 1 Li-ion battery. 3 hours operation time.
– 1 Adaptor.
– 1 Car Charger.
– Belt and sun shield.
– 1 USB port (Mini).
– Carrying case.PROBES– Rectal Linear L7FVC (6.5/7.1/7.5/8.3/9.0MHz).
– Rectal Linear L5FVC (4.0/4.7/5.0/5.5/6.2MHz).
– Backfat Linear L1FC (150mm, 2.5/3.0/3.5/4.0/5.0MHz).
– Convex C3FC (2.5/3.0/3.5/4.0/5.0MHz).
– Microconvex C5FC (3.5/4.0/5.0/6.5/7.1MHz).CTS-800 is a palm-sized veterinary ultrasound system. Features Weight: 0.8kg Environmental rating: IP54 (main unit) IP67 (probe head) Battery: 3 hours operation time Display mode: B 2B ZOOM B B/M M Depth: Max to 250mm B gain: 0-100 Image storage: 256 frames Cine loop: 256 frames Probe: L50/7.5 MHz linear rectal probe (standard) L65/5.0 MHz linear rectal probe (optional) R20/5.0 MHz micro convex probe (optional) |
