| Description | A world-class, combined automatic dental autoclave unit specifically designed to perform cleaning (internal and external), lubrication, and sterilization of dental handpieces in a single integrated cycle. | The new highly accurate 0.5 mm milling tool reliably delivers first class clinical results. Switch to Extra Fine milling mode for a higher level of detail with occlusal fissures and interdental areas on bridges. | A true open architecture system, the compact DWX-50 integrates with industry standard 3D scanners, computers and all popular CAD/CAM software to provide a very cost-effective production solution. Advanced communications tools and operating features allow the DWX-50 to mill unattended while providing confidence in the finished product to the lab technician. | The ultimate in ease, material flexibility and unattended production, the DWX-52DC dental milling machine is designed to greatly expand your lab production and profit. Featuring a 6-slot Automatic Disc Changer, 15-station Automatic Tool Changer and other automated features, it gives users of all skill levels an exceptionally powerful, efficient and affordable dental restoration solution. | iRay D4 has made life easy for the dental professionals around the world. Dental digital radiography is one of the current armamentarium which has polished the quality of dental treatment procedures. Portable IRAY D4 is now ready to replace the previous versions of intraoral cameras. | The Waterlase express is the all-tissue laser that will change the way you practice dentistry. Waterlase Express has the power to solve dental problems beyond expectation. The versatile and gentle combination of laser energy and water has the power to relieve dental anxiety at the source, for you, your team, and your patients. The countertop all-tissue laser features a miniaturised laser engine that is 50% smaller than the Waterlase iPlus, offering the benefits of all-tissue laser technology in a way that is compact, simple and easy to use. |

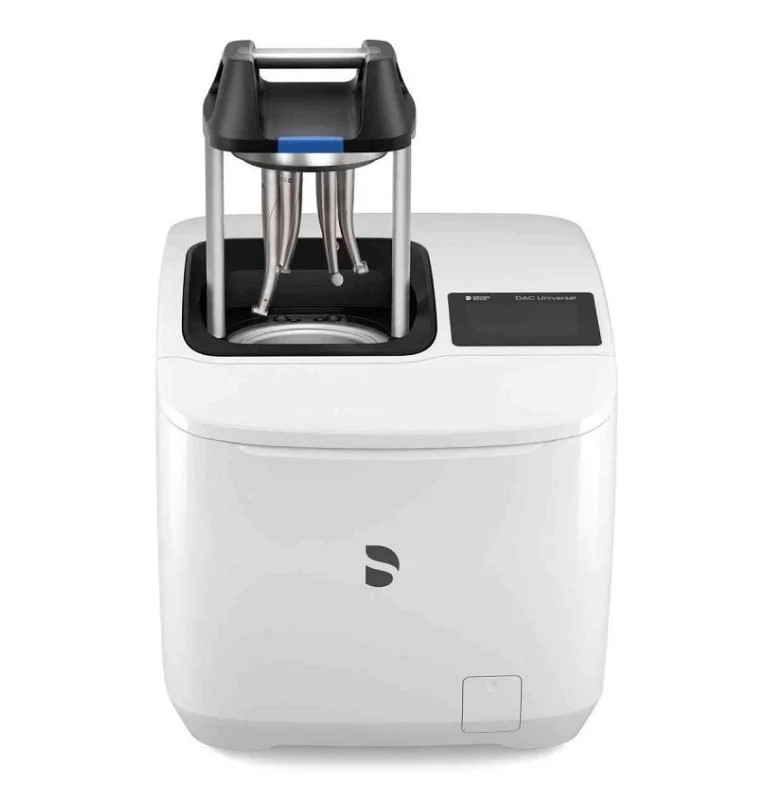

| Content | Dentsply Sirona DAC Universal S
Dentsply Sirona DAC Universal S system helps you to comply with stringent infection control standards at the touch of a button. Offering all-round protection for your patients and teams, this versatile decontamination solution will ensure you always have sterilised and reprocessed instruments that you can trust. From sonic handpieces and turbines to nozzles and tips, this DAC will have all of your most critical instruments sterilised and ready for use in just 21 minutes.FeaturesEase of use
New design, touch display with intuitive user interface, guided maintenance workflow Check & Clean.Fully automatic reprocessing
Six instruments in approx. 21 minutes; internal and external cleaning, lubrication (if needed) and sterilization of straight and contra-angle handpieces, turbines, ultrasonic / sonic handpieces and tips, nozzles of multifunctional syringes and powder jet devices as well as powder jet handpieces.Cost-effective and environmentally friendly reprocessing
Low operating and consumption costs – no use of cleaning and disinfection chemicals and only up to 900 ml water consumption per cycle. Low investment costs in instruments thanks to cooling at the end of the process and therefore quick return to service.Legal certainty
Cleaning and sterilization process which can be validated. Cleaning process in accordance with EN ISO 15883-1 / -2*. Sterilization process in accordance with EN ISO 13060* and ISO 17665-1. Routine Control with chemical indicator class 5 and PCD (Process Challenge Device).Technical DataPower supply: 200 – 240V AC, 50/60Hz
Consumption: 1.3kW
Compressed air connection: inlet pressure 5.0 – 8.0 bar
Short-term air consumption: 60 NI/min. at 5 bar
Oil canister capacity: 0.2L
Water tank capacity: 2.3L
Water consumption: approximately 900ml/cycle (Pink Lid program)
Water quality: < 3 μS / cm
Dimensions with lid open (H x W x D): 59 x 40 x 42cm
Dimensions with lid closed (H x W x D): 40 x 40 x 42cm
Capacity: up to 6 instruments
Weight: 26kg
Minimum distance from the wall: 10cm
Minimum distance from the ceiling: 70cm | DENTSPLY SIRONA CEREC PRIMEMILLSpeedEngineered for speed and precision, the new CEREC Primemill inherits the proven strength of its predecessor and raises its powerful performance to entirely new heights.You can now mill zirconia restorations in Super Fast milling mode in around 5 minutes, cutting processing times by more than half. The improved grinding mode for high quality glass ceramics also grinds the material faster than ever before. The result? Satisfied patients and high productivity.QualityDENTSPLY SIRONA CEREC PRIMEMILL A combination of new electronics, software, motors and mechanical components contributes to finer resolution and enhanced dynamics. This results in outstanding restoration margins and surface details – for extremely precise results.The new highly accurate 0.5 mm milling tool reliably delivers first class clinical results. Switch to Extra Fine milling mode for a higher level of detail with occlusal fissures and interdental areas on bridges.VersatilityDENTSPLY SIRONA CEREC PRIMEMILL Welcome to a world where you‘re spoiled for choice! The new CEREC Primemill combines wet and dry milling and wet grinding. No matter the indication, with CEREC Primemill you can select from a broad range of material options from validated partners providing the flexibility and predictability you need to offer patients the best possible treatment.Choose from the full spectrum of machining options, including dry and wet milled zirconia, or wet grinding of glass and hybrid ceramics.ConvenienceDENTSPLY SIRONA CEREC PRIMEMILL The new 7” touch interface with user guidance guides operators step-by-step through the workflow, key maintenance procedures and other routine tasks, so you can delegate milling with complete peace-of-mind. The integrated block scanner is a time-saving new feature that automatically scans material blocks with compatible data matrix codes and records the information, including type, size, color and zirconia enlargement factor. All CEREC Primemill tools are fitted with a color-coded RFID chip that is read by the RFID tool reader, feeding into the tool status display, alerting the user if a tool needs replacing. This ensures all tools are performing at optimal levels. A LED light strip indicates unit status and milling and grinding progress.The all-new CERECThe latest generation of our CEREC system sets new standards so you can offer your patients an unmatched combination of single-visit dentistry and excellent quality.A unique solutionThe CEREC system comprises world-class components that interact perfectly ensuring seamless workflows. With CEREC Primescan, CEREC Software 5 and CEREC Primemill, digital chairside dentistry is faster, easier and more reliable than ever before.Outstanding resultsAfter 35 years of continuous optimization, CEREC gives you the options you need to treat multiple indications with the confidence that comes from outstanding results.
Designed to stand out – and fit inThe new CEREC Primemill does not just communicate seamlessly with other CEREC devices, but its sleek design is also the perfect match – and the ideal look for a progressive dental practice. | Roland DWX-50 5-Axis Dental Milling Machine
The compact DWX-50 combines 5-axis simultaneous machining capability and a five-station automatic tool changer to deliver advanced features at a very affordable price point. Designed specifically for dental labs and technicians, the user-friendly DWX-50 allows for clean, quiet operation and the quality production of complex dental arches, abutments, bridges, copings and crowns from zirconia, wax and PMMA. Equipped with an integrated air blower and dust collection system, the DWX-50 ensures protection of moving parts while maintaining a clean, safe environment. Built on open technology, the DWX-50 supports a wide range of industry standard CAD/CAM software and tools, allowing for easy integration with popular commercially available dental prosthetic production solutions.5-axis simultaneous machiningCapable of 5-axis simultaneous machining, the DWX-50 supports the production of high-quality dental prosthetics at an affordable price point. The DWX-50 is designed to mill on X, Y and Z axes, rotating blocks and discs of material 360 degrees in both clockwise and counterclockwise movements, as well as tilting materials forward and backward 20 degrees to support complex cuts.Five-station automatic tool charger Roland DWX-50 5-Axis Dental Milling MachineThe five-station Automatic Tool Changer (ATC) with a tool length sensor enables the user to run multiple tools for one job or an entire disc unattended. Instead of inspecting finished pieces to determine if everything was milled correctly, the integrated tool diagnostics feature will notify users if a tool was broken prior to completion, resulting in reduced time and wasted materials.Taking control of prosthesis productionWith its unmatched ease of use and short learning time, the DWX-50 provides a cost-effective solution that is ideal for dental labs wishing to take control of the production process while avoiding the long lead times and costs associated with outsourcing.A true open architecture system, the compact DWX-50 integrates with industry standard 3D scanners, computers and all popular CAD/CAM software to provide a very cost-effective production solution. Advanced communications tools and operating features allow the DWX-50 to mill unattended while providing confidence in the finished product to the lab technician. | Roland DWX-52DC Dental Milling UnitDWX-52DC
| 5-Axis (Control XYZAB simultaneously) | Milling method：Dry mill | Cuttable material：Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum | | DWX-52DC | | Cuttable material | Zirconia, Wax, PMMA, Composite resin, PEEK, Gypsum, Fiber reinforced resin, CoCr sinter metal | | Loadable workpiece shape | Step section: | 98.5 mm (diameter), height 10 mm | | Body section: | 95 mm (diameter), height max. 35 mm
Pin diameter: 6 mm | | Pin diameter: | 6 mm | | Loadable workpiece weight | Up to 850 g | | Number of adapters housed | 6 | | Operating speed | XYZ axis: | 0.24 to 70.9 in./min.(6 to 1,800 mm/min.) | | Spindle motor | Brushless DC Motor | | Spindle speed | 6,000 to 30,000 rpm | | Rotary axis travel angle | A: | ±360° | | B: | ±30° | | Number of burs housed | 15 | | Attachable bur | Shank diameter: | 4 mm | | Length: | 40 to 55 mm | | Compatible compressed air | 0.2 MPa | | Interface | USB | | Control command set | RML-1, NC code | | Power requirements | AC 100 V to 240 V ±10%, 50/60 Hz, 2.0 A
(overvoltage category II, IEC60664-1) | | Power consumption | Approx. 200 W | | Operating noise | During operation: | 70 dB (A) or less (when not cutting), | | During standby: | 45 dB (A) or less | | External dimensions | Width x Depth x Height: | 34.6 x 26.0 x 23.6 in. (880 x 660 x 600 mm) | | Weight: | 105 kg (231.5 lbs.) |
The ultimate in ease, material flexibility and unattended production, the DWX-52DC dental milling machine is designed to greatly expand your lab production and profit. Featuring a 6-slot Automatic Disc Changer, 15-station Automatic Tool Changer and other automated features, it gives users of all skill levels an exceptionally powerful, efficient and affordable dental restoration solution. | Dexcowin IRay D4 Dental Handheld X-Ray System
Dexcowin’s iRay D4 is a total dental imaging solution. The iRay D4 comes with an attachable digital sensor, a built in computer for image processing and a 4.8” digital screen so you can see your radiographs live. Diagnosis with a single machine, completely safe and mobile allows imaging on the go. The iRay D4 works with film, digital sensors and PS (photostimulable phosphor) plates. The iRay D4 is wireless, handheld, and completely mobile thus eliminating the need for designated X-ray machine rooms.Dexcowin’s iRay D4 is an all in one solution. It is an x-ray source, a computer, and comes with a high-quality sensor. The iRay D4 can be used as a simple x-ray source when used with film or a sensor attached to a separate computer.The iRay D4 is wireless, handheld, and completely mobile thus eliminating the need for designated X-ray machine rooms. The iRay D4 is perfect for the endodontic who need to surgical procedures in process or mobile dentist practicing in remote locations without computer access.Safety* Safe to hold by hand. 1/7 the radiation exposure then conventional systems.
* Rechargeable Li-poly batteries allow up to 300 images on a single charge.
* Works with any radiographic medium: film, digital sensor, PS plates.
* Operator Safe: Certified as SAFE TO USE BY HANDMobility* The iRay D4 is a complete mobile system. It has an on board computer and a 4.8” screen that allows the doctor to take analyze X-rays with a single piece of equipment.
* There is no need for additional equipment as the iRay D4 comes complete with a high definition sensor.
* The iRay D4 is the most mobile and independent solution on the market today.
* The iRay D4 comes with two rechargeable Li-poly batteries with up to 300 shots on a single charge.
* The iRay D4 also includes wireless transfer to your PC, now take and view your X-rays anywhere!Quality* The iRay D4 gives you more for less than conventional systems. The iRay D4 does not need special construction in terms of shielded rooms, chemical development and dedicating rooms for X-ray.
* The iRay D4 does not require special technical equipment such as computers and additional sensors thereby providing quality all-in-one equipment.
* It allows you to take an x-ray in real time, while you are in the room. This allows the practitioner to provide his customer face to face reassurance while the X-rays and images are taken.Still not convinced? We also offer a 5-jointed stand arm for which you can mount the iRay D systems. Comes fixated to a mobile cart so you still preserve the portable characteristics of the iRay system. With an included remote control, satisfy any operator who still feels uneasiness with being in the same room as an X-ray machine.Digital X-ray Specifications:Dexcowin IRay D4 Dental Handheld X-Ray SystemProduct Name : iRay D4
CPU : 1.6GHz
DISPLAY : 4.8”Touch Panel TFT-LCD (1024×600)
MEMORY : 16GB
EXPOSURE : 0.05 ~ 1.35, 0.01 step
BATTERY : rechargeable 4 cell high capacity battery pack
INTERFACE : USB2.0
Tube Voltage : 60kV(fixed)
Tube Current : 2mA(Fixed)
Focal Spot Size : 0.8mm
Voltage Consumption : 240W Max
Cooling Method : Oil Cooling
Total Filtering : Over 1.5mmAl (inherent filtration : 0.8mmAl, fixed type added filter : 0.7mmAl)
Target Angle : 20°
Time Setting Function : 0.05 ~ 1.35 second (0.01 step)
Main Body Size : 240(L) x 166(W) x 82(H) [mm]
Main Body Weight : 2.4kg
Battery Pack : Cell Material Quality Lithium Polymer
Charging Condition : Charging Current 1A
Temperature Range : 0~40°C
Maximum Current : 18A
Out Voltage : DC 15V
Temperature Range : -20 ~ 60°C | 2019 BIOLASE Waterlase Express Dental Laser With Hand PieceRestorative
– Cavity Preparations
– Sub-gingival decay removal
– TroughingSoft-Tissue
– Achieving hemostasis
– Frenectomy techniques
– Biopsies and lesionsPerio
– REPAIR Perio protocol (all steps)
– Closed crown lengthening
– Flap surgeryImplant
– REPAIR Implant protocol (all steps)
– Implant debridement
– Flap surgeryEndo
– Access, cleaning, and shaping
– Pulpotomy, Pulp Cap
– Disinfection of Root Canal
– Removal of Smear LayerSpecifications:
– Wavelength: 2.78 µm (2780 nm)
– Max. Power Output: 4 W Pulse
– Energy: 200 mJ Pulse
– Rep Rate: 5-50 Hz Pulse
– Duration: H: 60 µsec, S: 700 µsec
– Laser Engine: Miniaturized Er,Cr:YSGG laser engine
– Fiber Optic Cable: White, highly flexible, reliable
– User Interface: Applications-based, removable tablet
– Touchscreen Size: 9.7”x 6” (24.64cm x 15.24cm)
– Pre-sets: 95 procedural presets, with simple slider bar to adjust settings within each procedure
– Additional Content: Procedure animations, case studies, best practices
– WiFi-enabled for BIOLASE Connect: Yes
– Weight: 27 Lbs (12.247 kg)The Waterlase express is the all-tissue laser that will change the way you practice dentistry. Waterlase Express has the power to solve dental problems beyond expectation. The versatile and gentle combination of laser energy and water has the power to relieve dental anxiety at the source, for you, your team, and your patients. The countertop all-tissue laser features a miniaturised laser engine that is 50% smaller than the Waterlase iPlus, offering the benefits of all-tissue laser technology in a way that is compact, simple and easy to use.2019 BIOLASE Waterlase Express Dental LaserWaterlase Express is the only laser to feature an in-depth, step-by-step, 4K HD animation for every step of every procedure. No matter your level of expertise, from beginner to advanced user, the Waterlase Express animation library is a dazzling, informative training resource.– 95 clinical presets for soft tissue, hard tissue and bone.
– Step-by-step procedure animations.
– Removable tablet with easy-to-use touchscreen interface.
– Loaded system menu features on-board reference material.
– H MODE – 60 microseconds – a cooler mode for cutting enamel and all other applications.
– S MODE – 700 microseconds – a hotter mode for coagulation.
– Stay up-to-date and connect with fellow users, clinical mentors and online training directly from the unit.
– Customer care access for direct help when needed.
– Sturdy handle for easy transport makes the Waterlase express conveniently portable.
– Wireless footswitch for easy integration.
– Light and flexible SureFire trunk fibre ensures minimal resistance and treatment fatigue.
– Over 2 hours of 4K-Ultra-HD learning content |
